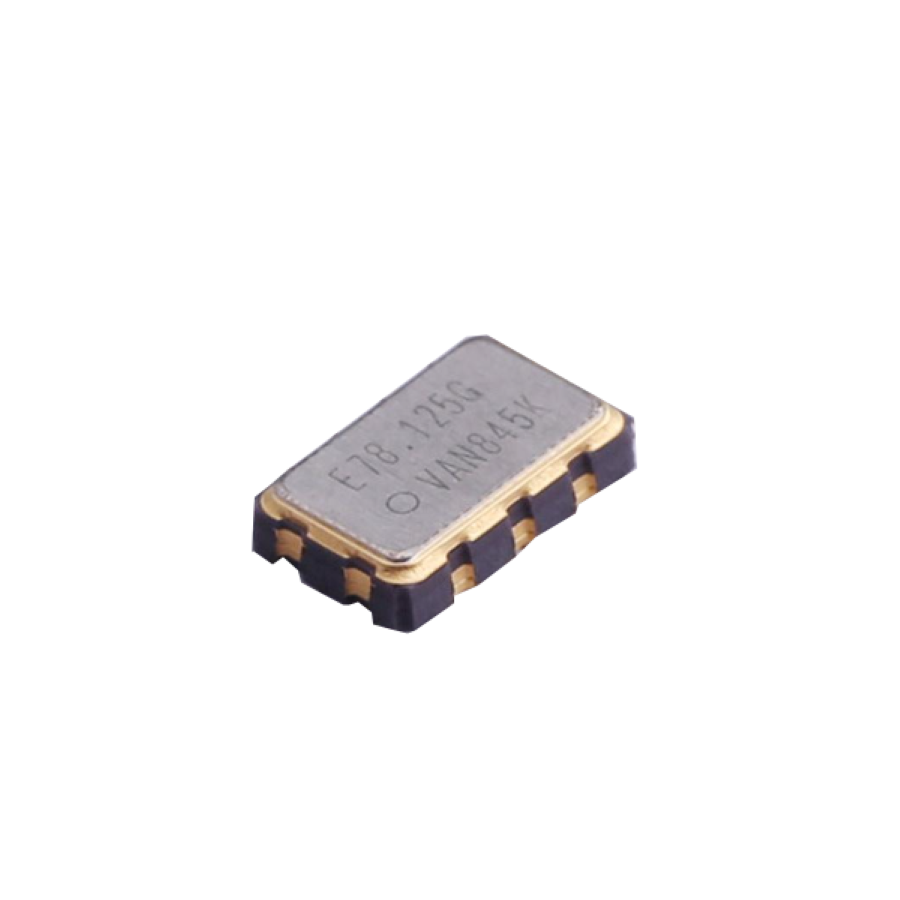

ASGTX-D-1.000GHZ-1
Manufacturer:
Abracon Corporation
Mfr.Part #:
ASGTX-D-1.000GHZ-1
Datasheet:
Description:
Oscillators 9.00mmL×7.00mmW×2.24mmH SMD/SMT 1 GHz
| Parameter | Value |
|---|---|
| Length | 8.9916 mm |
| Width | 7 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -30 °C |
| Number of Pins | 6 |
| Height | 2.2352 mm |
| Packaging | Bulk |
| RoHS | Compliant |
| Frequency | 1 GHz |
| Frequency Stability | 1 ppm |
| Frequency Tolerance | 0.00015 % |
| Load Capacitance | 15 pF |
| Operating Supply Voltage | 3.3 V |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Max Supply Voltage | 3.465 V |
| Min Supply Voltage | 3.135 V |
| Max Supply Current | 40 mA |
| Max Duty Cycle | 55 % |
| Output Format | LVDS |
| Base Resonator | Crystal |
| Height - Seated (Max) | 2.25 mm |
Stock: 4
Distributors
pcbx
pcbxUnit Price$40.14916
Ext.Price$40.14916
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $40.14916 | $40.14916 |
| 10 | $34.91260 | $349.12600 |
| 25 | $34.34454 | $858.61350 |
| 50 | $33.78579 | $1689.28950 |
